Yield Is Not Failure

§ 01The Line Before the Break

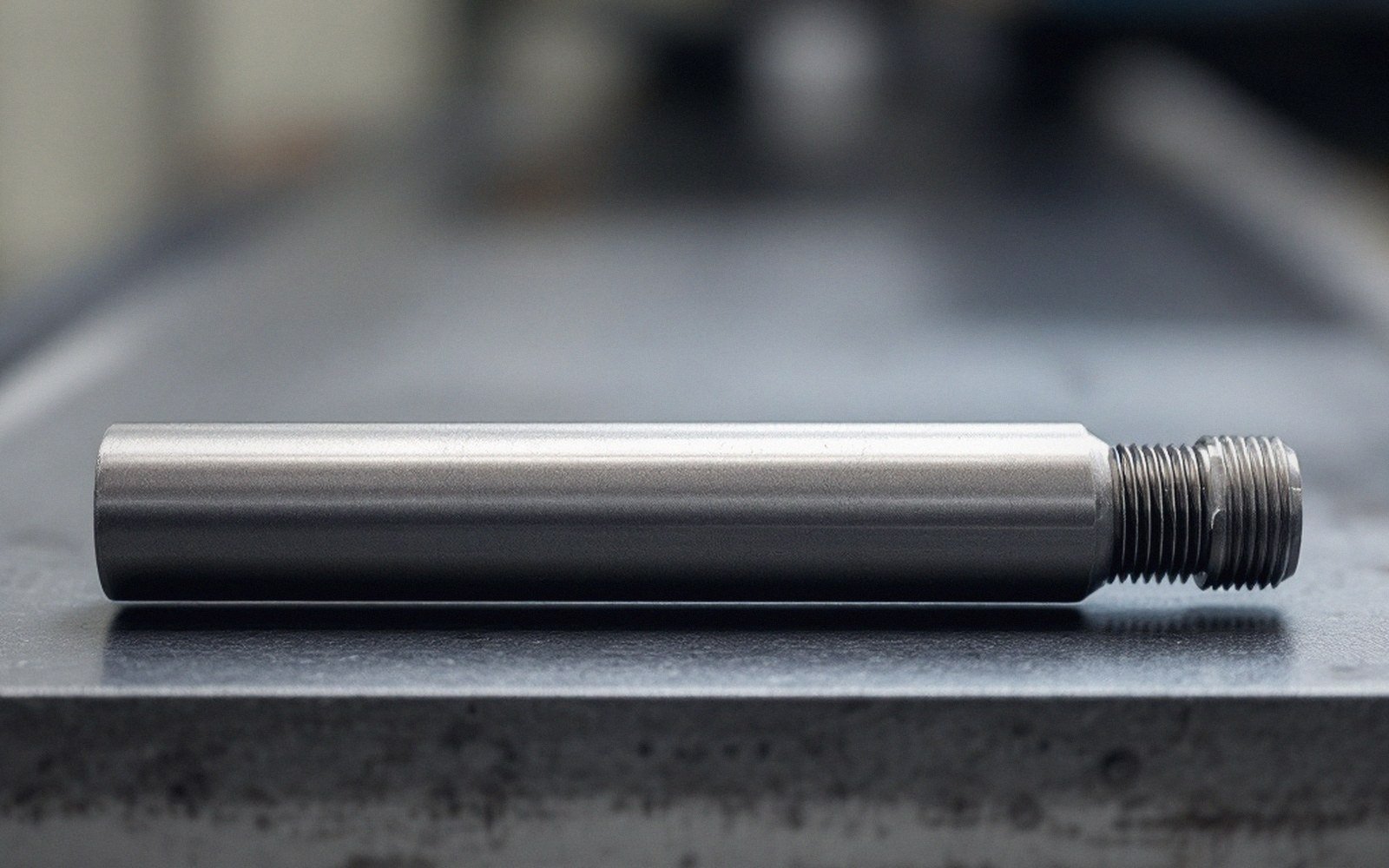

Load a steel bar and it stretches. Remove the load and it springs back. Do this a thousand times and the bar returns faithfully to its original length, because within the elastic range, deformation is reversible — the atoms displaced by stress return to their lattice positions the moment the force is lifted. Nothing permanent has happened.

Then push further. At some stress level — the yield point — something shifts. The bar still carries the load, still looks undamaged, but when you release it, it no longer returns to where it started. A small permanent offset remains: the first plastic deformation. The material has yielded. It has not broken, has not lost all its strength, has not failed in any ordinary sense of the word. But it has crossed a line from which there is no going back.

That line is the one this publication is named after, and it deserves careful treatment, because two common misreadings of it cause real trouble in practice. The first misreading says yield is failure — that once a material has yielded, the structure it belongs to is done. The second says yield is safe — that because a yielded component has not broken, nothing serious has happened and the margin remains. Both are wrong, in ways that matter.

The gap between yield stress and ultimate stress is meaningful

§ 02What Yield Actually Is

In most metals, the yield point corresponds to the stress at which dislocations in the crystal lattice begin to move freely. A dislocation is a line defect in the crystal structure, and plastic deformation is essentially the movement of enormous numbers of these defects through the material. Below yield, the lattice deforms elastically — like a spring. Above it, dislocations slip past obstacles and the deformation becomes permanent — like clay, if the comparison is not pushed too far.

In low-carbon steel, this transition is sharp and visible. A stress-strain curve for mild steel shows a distinct upper yield point, at which the load drops slightly, followed by a lower yield point at which the material deforms at roughly constant stress through a region called the Lüders extension or yield plateau. On a tensile testing machine, you can watch the chart: the force climbs, hesitates, then the material stretches without much additional load before strain hardening begins and the curve rises again. Other metals — aluminium alloys, high-strength steels — show no such distinct knee. Their transition is gradual, which is why engineers define a proof stress for them instead: the stress at which a fixed percentage of permanent strain, typically 0.2%, is left behind after unloading. The number is artificial, the phenomenon is real.

Beyond the yield point, continued loading enters the strain-hardening region. The material is harder to deform than it was at yield — each dislocation movement makes further movement slightly harder — and the load required to deform it further rises. This continues until the material reaches its ultimate tensile strength, at which point a neck forms in the test bar, the cross-section reduces locally, and fracture follows. The gap between yield stress and ultimate stress is meaningful. For structural steel it can be substantial, and this range is where significant energy can be absorbed before fracture. It is why steel structures in earthquakes are sometimes designed to yield deliberately — controlled plastic deformation dissipating energy — rather than remain elastic and transmit loads they cannot survive. This is ductile overload working by intention rather than by accident.

§ 03Why Design Lives Behind the Line

If a structure that has yielded has not broken, and if there is significant strength remaining before fracture, why does almost all structural design code its allowable stresses below yield? The answer has several parts, and they compound.

First, yield changes the geometry. A beam that has yielded plastically has a permanent set — a deflection that does not recover. In a bridge, that might be visible and alarming to users before it is dangerous to the structure. In a pressure vessel, permanent distortion of a nozzle or flange face can compromise a seal. In a precision machine, yield in a mounting point changes alignment. The structure may still carry load, but it no longer does so from the same starting position, and subsequent loading cycles begin from a different geometry than the one the designer assumed.

Second, a material that has yielded may behave differently in future loading. Some of this is beneficial — strain hardening raises the local yield stress, which is why a lightly overloaded structure sometimes survives what should have exceeded its rated capacity. But the Bauschinger effect works in the other direction: a metal that has been plastically deformed in tension has a reduced yield stress in compression, and vice versa. For components that see reversed loading — axles, connecting rods, anything cycling between tension and compression — prior yielding in one direction creates vulnerability in the other.

Third, and most practically, the design process is built on elastic analysis. Stress distributions in a complex structure are calculated on the assumption that every element is behaving elastically. Once any part of the structure yields, its stiffness drops, load redistributes among neighbouring elements, and the calculated stress state is no longer accurate. This does not necessarily mean the structure is in immediate danger — load paths can shift to accommodate a local yield zone — but it does mean the designer has left the regime in which the analysis is valid. Staying below yield keeps the calculation honest.

Fourth, there is the question of what yield means for fatigue life. Plastic deformation at a stress concentration — a notch, a hole, a weld toe — introduces residual stress and local work hardening. Depending on the sign of the residual stress and the loading sequence, this can either increase or decrease the fatigue life of the component. Deliberately induced compressive residual stress through controlled shot peening or autofrettage is a technique built on this insight. But uncontrolled yield at a stress raiser, left uninspected, is a different matter: it has started a conversation about crack initiation that the designer may not know is happening.

§ 04What a Yielded Structure Is Afterwards

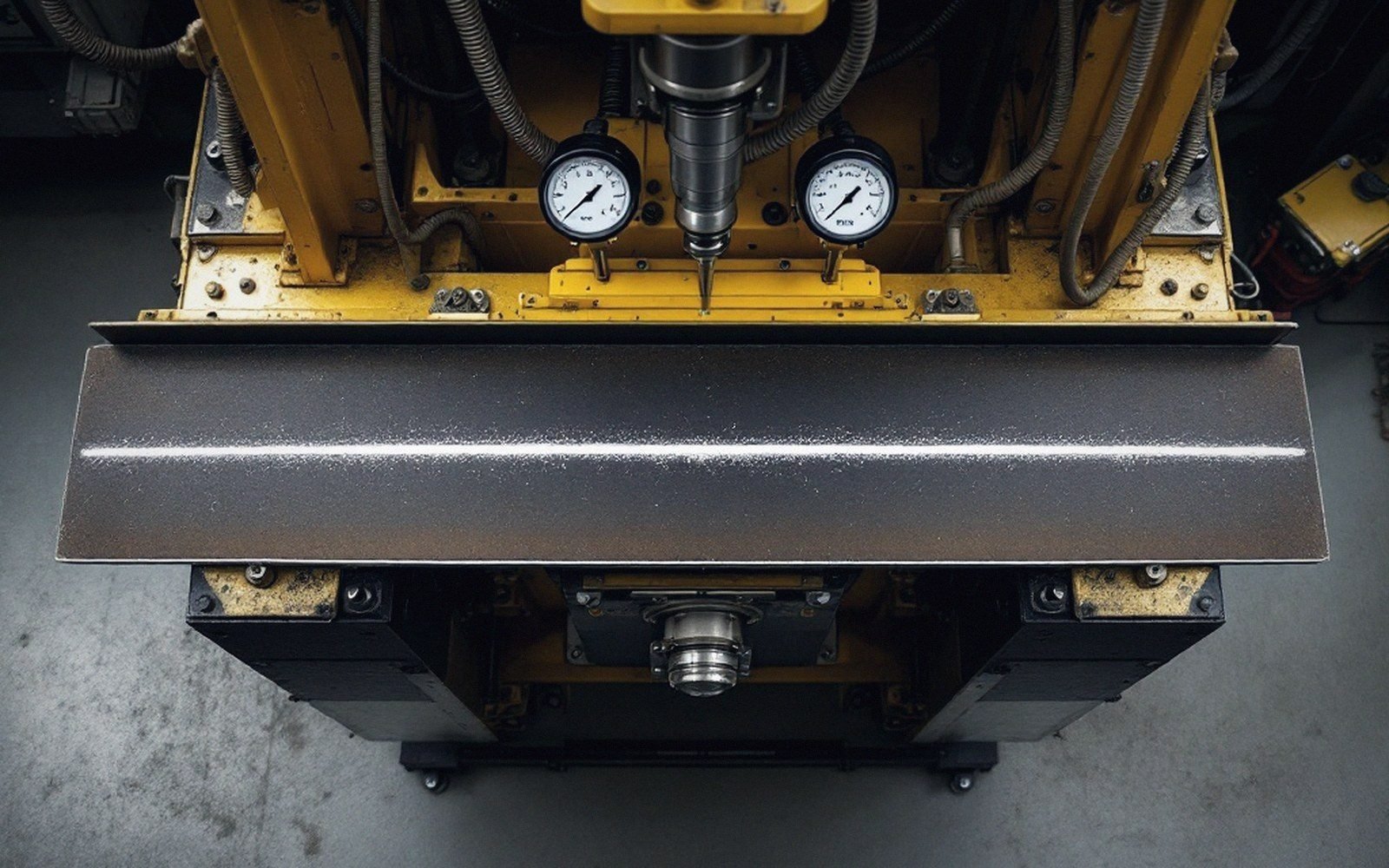

When a structure or component has been loaded beyond yield and then returned to service, it is different from one that has not. The permanent deformation, however slight, is evidence of where and by how much the elastic design envelope was exceeded. Inspection after suspected overload looks for this: permanent set in members, distortion of connection geometry, cracking in brittle coatings or paint that would follow plastic deformation of the substrate. These are not decorative findings. A beam with a permanent set has told you something about what happened to it, and that information belongs in the assessment of whether it can continue at rated load.

In some applications, yield on first loading is anticipated and designed for. Autofrettage deliberately yields the bore of a thick-walled pressure vessel, leaving compressive residual stress that improves fatigue life in subsequent pressure cycles. Proof loading of components — applying a load above the working load before service — works partly on this principle: anything that was going to yield or crack under the proof load does so then, not in service. But these are controlled, inspected, understood events, not accidental ones, and they rely on knowing exactly where yield occurs and what the residual state is afterwards.

The deeper point is that yield is not a binary. It does not happen uniformly across a whole structure at once; it starts at the most-stressed point and spreads as load increases. A structure at the cusp of first yield at its worst stress concentration is very different from one in which large volumes of material have fully plasticised. Plastic hinge theory in structural steel design tracks this progression — a beam forms its first plastic hinge, load redistributes, more hinges form, and only when a mechanism exists does the beam collapse. The collapse load is higher than the load at first yield, sometimes substantially so. This is the reserve that the factor of safety sits against, and understanding it is what separates a designer who works with the material from one who only works with the number.

Yield is the line. Crossing it is not the same as failing to carry the load, and knowing the difference is what lets an engineer place that line correctly in the first place.
